TRIMMING DIE (INTEGRAL)

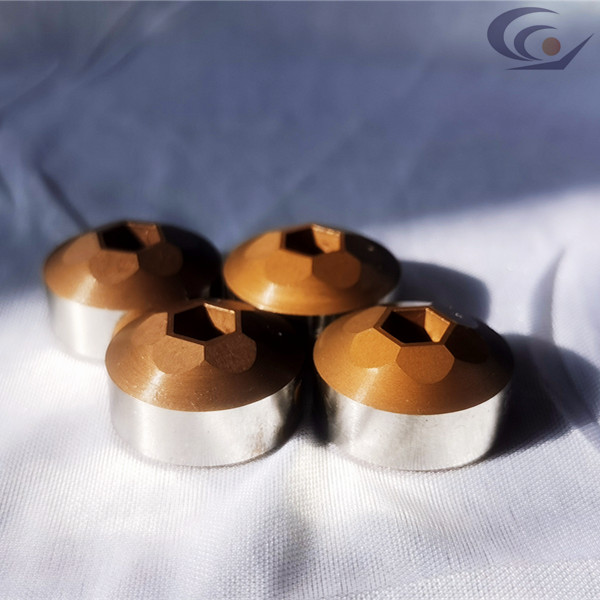

HEXAGON TRIMMING DIE For bolt and nuts M2,M35,M42, TIN and TiAIN

Products Details

PRODUCT DESCRIPTION

Trimming die is mainly used for trimming process parts of the edge.The trimming die keep the screw or blot is smooth and beautiful of the end face, which is convenient for the next assembly.It is made of HSS materials with PVD /CVD coating. Our trimming dies are suitable for carbon and stainless steel. It comes in a wide range of sizes for M4 to M24 bolts. Materials Included:M2, M35, M42. We can produced the accroding to standard or your blot drawing,and we can R&D accroding to your samples and customer's request.

TECHNICAL SPECIFICATION

Order the trimming die, please let me know the dies size,outer diameter,thickness, inner diameter and blot drawing . 47 L:Trimming dies thickness D: Trimming dies diameter S: Trimming dies inner diameter

SIZE

AF

S

D

L

REMARK

M4

S7

6.80-7.00

20

12

Integral

M5

S8

7.80-8.00

20

12

Integral

M5

S8

8.00-9.00

30

20

Composite

M6

S10

9.80-10.00

30

20

Composite

M8

S12

11.78-12.00

35

23

Composite

M8

S13

12.75-13.00

35

23

Composite

M8

S14

13.78-14.00

35

23

Composite

M10

S16

15.75-16.00

42

23

Composite

M10

S17

16.78-17.00

42

23

Composite

M12

S18

17.75-18.00

45

28

Composite

M12

S19

18.70-19.00

45

28

Composite

M14

S21

20.78-21.00

59

32

Composite

M14

S22

21.74-22.00

59

32

Composite

M16

S24

23.75-24.00

59

32

Composite

M18

S27

26.74-27.00

59

32

Composite

M20

S30

29.74-30.00

59

32

Composite

M22

S34

33.20-33.30

70

40

Composite

M24

S36

35.45-36.00

70

40

Composite

  MATERIAL M2        (Integral trimming die) HSS+M2   (Composite trimming die) M35, M42 We will accroding to your products,material,choosing good material and manufacturing technique.   COATING STYLES TIN coating     (Yellow coating) TiAIN coating   (Black coating)

DELIVERY TIME

Standard Size: 12 Working days Customization: 15 Working days



MOQ

Standard Size:  10 Pcs.

Customization:  20 Pcs.   PACKING  Packed with box, 1 Pcs per box.   QC We are equipped with Rockwell hardness tester, Inlaying machine, Coating analyzer, Microscope,3-D inspection instruments and other testing equipment, to ensured the good quality of trimming die.
