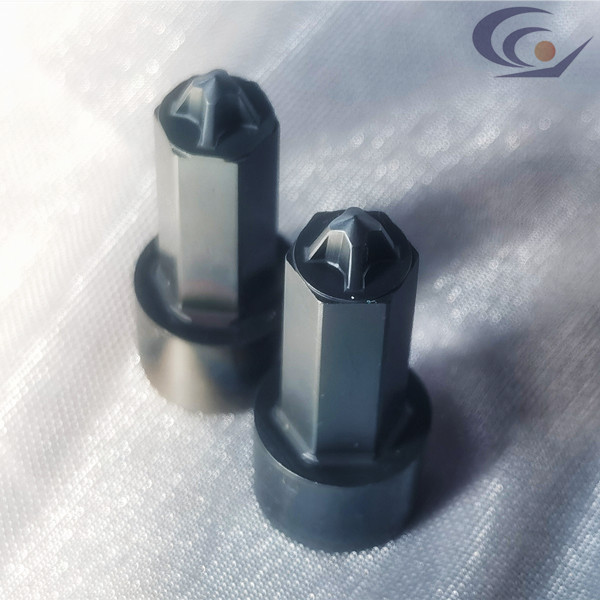

HEX PUNCH PIN

HEX PUNCH PIN PH,PH+COMBIN,PH+COMBIN+STEP, PZ, M2+TIN, M3+TiAIN,M42+TiAIN

Products Details

PRODUCT DESCRIPTION

TECHNICAL SPECIFICATION

COATING STYLES

MATERIAL

Without coating TIN coating (Yellow coating) TiAIN coating (Black coating)Second punch is a conventional die for screw heading machine. It is used for producing screw head and groove parts. If you order the punch pins, please let me know the diameter,length, M(PH width),Q(PH depth),d & AF &G (head diameter),H(head depth). We can produced the second punch accroding to the standard, and we can R&D accroding to the drawing, samples and customer's request.

DELIVERY TIME

SAMPLES

QC

WEIGHT

PACKING

MOQ

Standard Size:12 Working days Customization:15-20 Working days50 Pcs/Size. Less 50Pcs, should pay mould cost about 40US dollar.Φ12mm   0.24Kgs/Box Φ14mm   0.32Kgs/Box Φ18mm   0.55Kgs/Box Φ23mm   0.85Kgs/Box Φ25mm   0.94Kgs/BoxSecond punch packed in Green cartons. We can packed in white cartons by customer's request. 10Pcs per Box.We are equipped with Rockwell hardness tester, Inlaying machine, Coating analyzer, Microscope,3-D inspection instruments and other testing equipment, to ensured the good quality of second punch.Thailand,Vietnam,Indonesia,Malaysia,India,Turkey,Iran,Russia,Pakistan,Uzbekistan,Kazakhstan, and more countries or regions.

TRANSPORT DETAILS

SALES MARKET

We can offer 5-10Pcs as samples to check the size and quality, but you should pay the shipping cost. We could`t send the Customization punch as samples.Shipment by Air, by Train, by Sea, by TNT, DHL,SF-express.Choose Chaoyue mould.We effectively reduce the obstacles and the costs for molding in your production and design. Your satisfaction is the eternal pursuit of all Chaoyue staff,we are ready to be your reliable partner and honest friend.HSS: M2, M3, M42.
