0314F for 0# mini screw

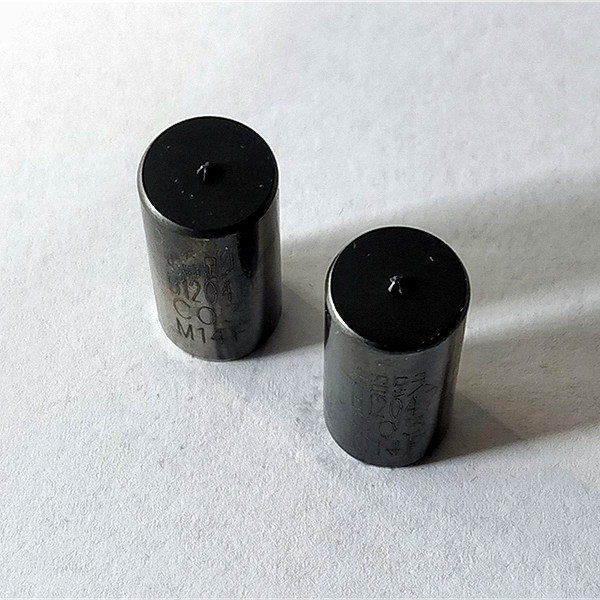

0#PUNCH  0314F For 0# mini screw 12*25 TILAN
send email to us

Products Details

Second punch is a conventional die for screw heading machine. It is used for producing screw head and groove parts. If you order the second punch, please let me know the diameter,length, M(PH and PZ width),Q(PH depth),D(head diameter),H(head depth). We can produced the second punch accroding to the standard, and we can R&D accroding to the drawing, samples and customer’s request. 0314 F 03 PUNCH SIZE(Diameter&Length)
Diameter: Φ12mm,Φ14mm,Φ18mm,Φ23mm,Φ25mm Length: 25mm
sadadadasda2
MATERIAL
HSS: M2, M3, M42.
COATING STYLES
Without coating TIN coating (Yellow coating) TiAIN coating (Black coating)
DELIVERY TIME
Standard Size:12 Working days Customization:15-20 Working days
MOQ
50 Pcs/Size. Less 50Pcs, should pay mould cost about 40US dollar.
PACKING
Second punch packed in Green cartons. We can packed in white cartons by customer’s request. 10Pcs per Box.WEIGHT
Φ12mm   0.24Kgs/Box Φ14mm   0.32Kgs/Box Φ18mm   0.55Kgs/Box Φ23mm   0.85Kgs/Box Φ25mm   0.94Kgs/Box
SAMPLES
We can offer 5-10Pcs as samples to check the size and quality, but you should pay the shipping cost. We could`t send the Customization punch as samples.
TRANSPORT DETAILS
Shipment by Air, by Train, by Sea, by TNT, DHL,SF-express.
